RP8Si Automatic Door Bottom Seals
Regular price
$140.00 NZD
A concealed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is acoustically designed, featuring silicon gaskets for medium temperature smoke and fire door applications. Operated automatically by pressure against the door jamb on its adjustable strike. RP8Si can also be fitted into the bottom rail of a metal door by the fabricator. Has a level adjustment to achieve an optimum seal.
Note: Only the escutcheon plates are coloured on the black and bronze variants.
Product Specifications
Location

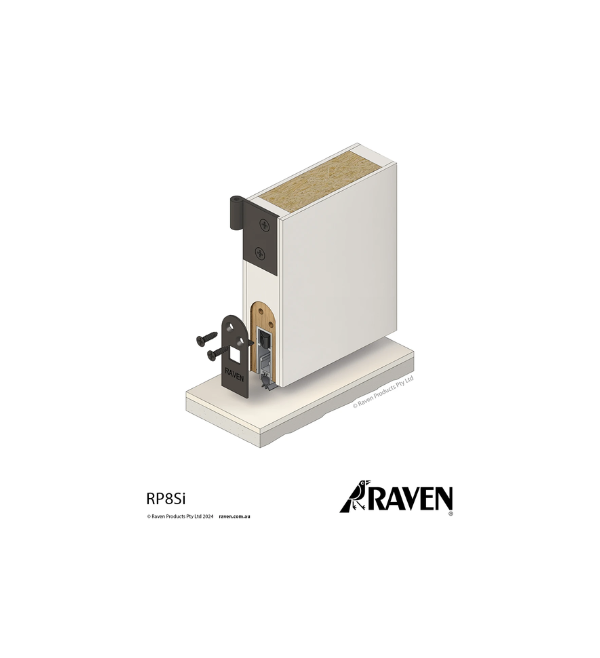

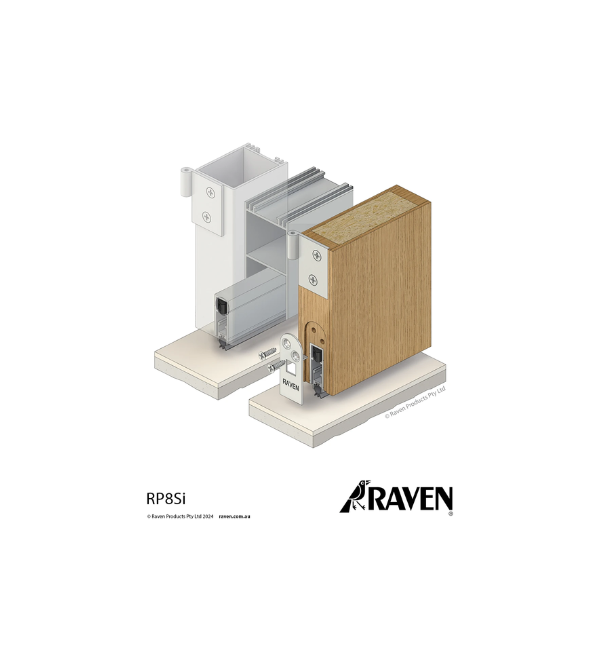

Fully morticed into a 15mm x 34mm groove into the bottom of single and double butt hinged timber and metal doors.
Size/Length (Length can be cut back to)
380mm (295mm), 600mm (380mm), 820mm (600mm), 920mm (820mm), 1070mm (920mm), 1220mm (1070mm), 1500mm (1220mm)
Fixing
Fully Morticed, Screw Fixed
Concealed screw fix with colour matched stainless steel escutcheon plates and screws supplied.

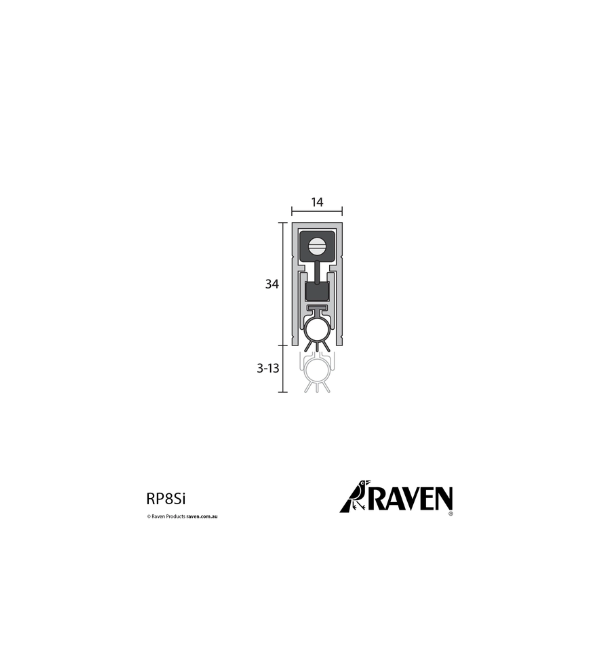

Min & Max Gap
3mm to 13mm
Replacement Seals
Available Colours
Black Anodised, Bronze Anodised, Silver Anodised
Material
Aluminium
Anodised aluminium with silicon rubber (SE) gasket.
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Door/Frame Construction
Timber, Aluminium
Door Type
Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening
