RP128Si Automatic Door Bottom Seals
Regular price
$237.00 NZD

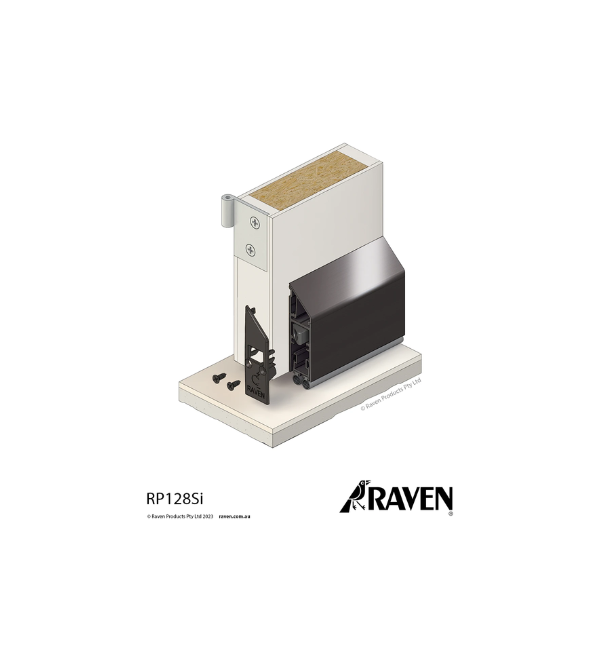

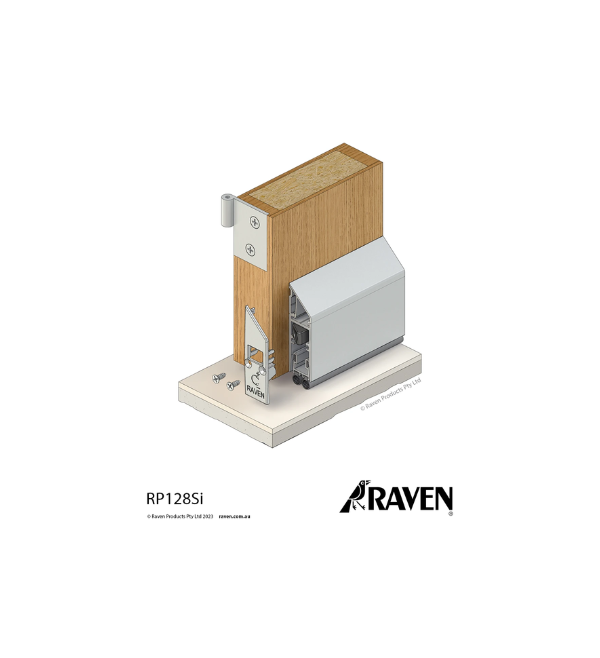

An adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. Acoustically designed, featuring extruded silicon gaskets for medium temperature smoke applications, the RP128Si is operated automatically by pressure on the door stop by its adjustable strike. Utilising an aesthetic extruded aluminium cover for concealed fixing. It is self levelling.
Product Specifications
Location
Face mounted to the bottom of single and double Solid core butt hinged doors. RP128Si can also be face mounted to the bottom of metal doors.
Size/Length (Length can be cut back to)
600mm (305mm), 820mm (600mm), 920mm (820mm), 1070mm (920mm), 1220mm (1070mm), 1500mm (1220mm)
Fixing
Face Mounted, Screw Fixed
Concealed screw fix. Zinc plated, cross recess head S.T. screws supplied. Colour matched escutcheon plates and face mount aluminium angle included.

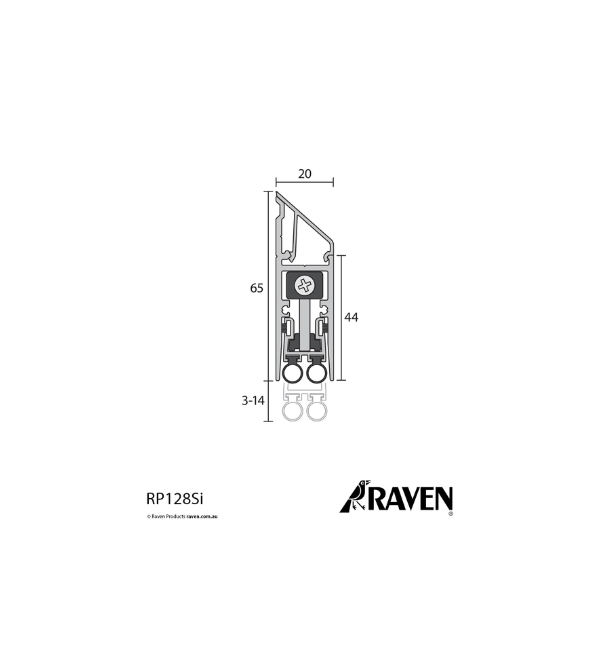

Min & Max Gap
3mm to 14mm
Replacement Seals
Available Colours
Black Anodised, Painted (Extra Cost), Silver Anodised
Material
Aluminium
Anodised aluminium with silicon rubber (SE) gasket.
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Door/Frame Construction
Timber, Aluminium
Door Type
Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening
Patent Status
Patented
